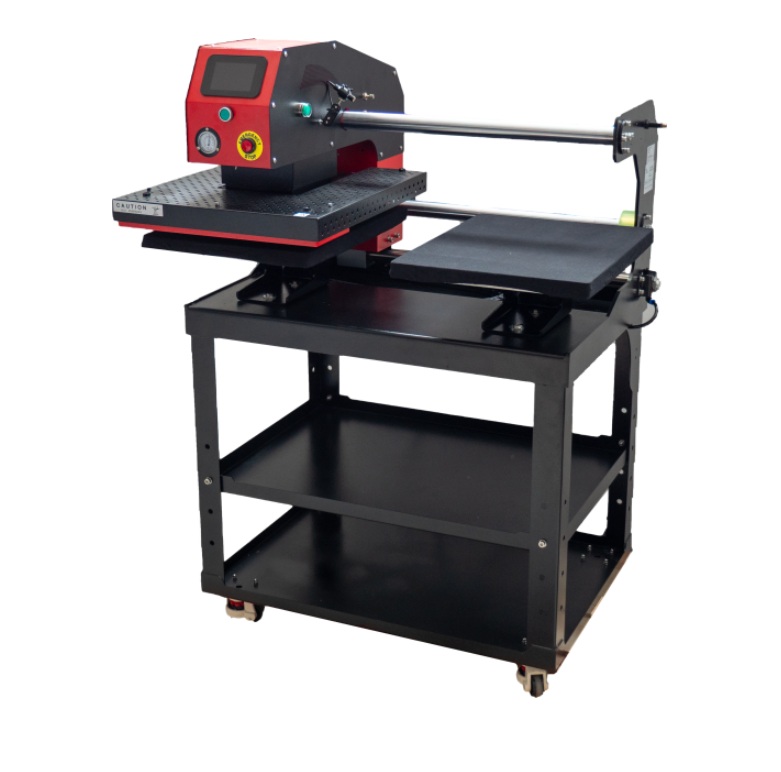

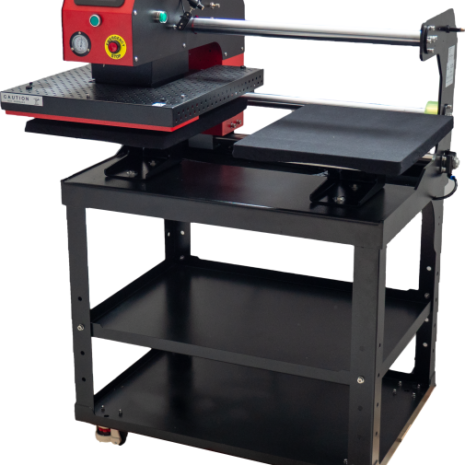

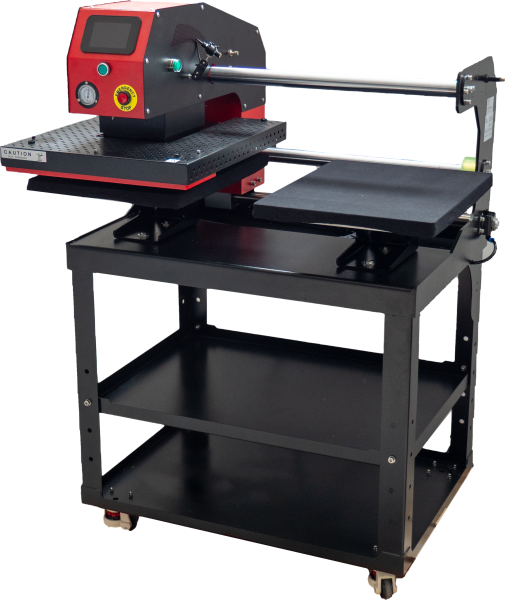

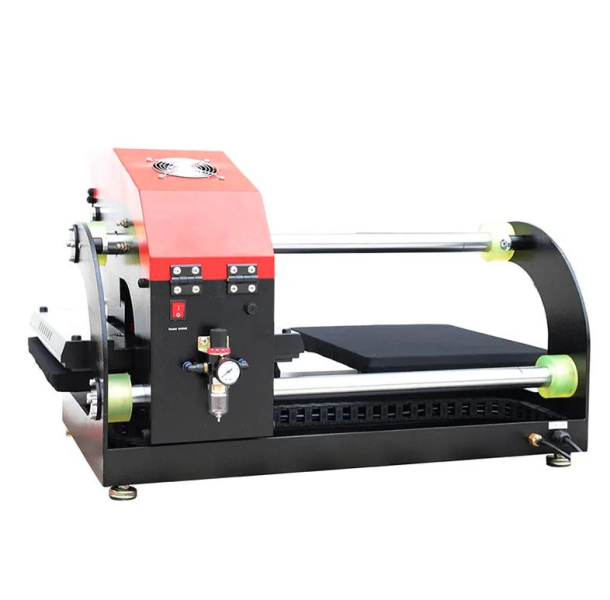

Heat press 400×500 mm – dual, air compressor

Detailed description

Fully automatic dual heat press with easy swivel (left/right), designed for fast, stable, and repeatable production. Two workstations allow the operator to prepare the next item on one side while the other station is already performing the transfer—significantly increasing productivity and reducing downtime.

Operation is simple: press the buttons and the press automatically moves left or right and then automatically lowers, ensuring even pressure and consistent results. With reliable time and temperature control, it is an excellent choice for fast, high-quality production of DTF transfers, and it is also suitable for transferring graphics onto various materials.

Specification

• Machine type: automatic, shuttle, dual heating platen

• Platen size: 2 × 40 × 50 cm

• Lower platen: fixed

• Controller: GY-04 digital time and temperature control

• Max. material thickness: up to 50 mm

• Air compressor required: yes

• Voltage: 120 V / 220 V

• Power: 1450 W / 1800 W

• Time range: 0–999 s

• Max. temperature: 225 °C

• Temperature accuracy: ±0.5%

• Packing size: 110 × 109 × 90 cm

• Gross weight: 200 kg (wooden crate)
