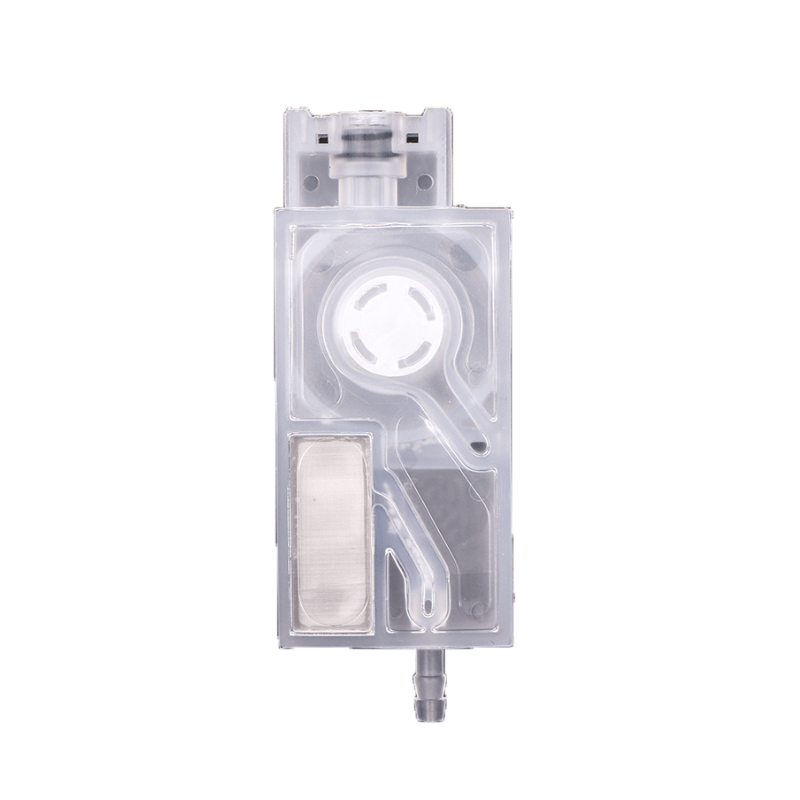

DTF Damper for Epson I1600 and I3200 Head

Detailed description

DTF damper (ink damper) for Epson I1600 / I3200 is an important consumable part of the ink system that plays a key role in stable, safe, and repeatable printing. Its function is to regulate ink flow and dampen pressure fluctuations between the reservoir/ink system and the print head, while also acting as a micro-filter for fine impurities. In DTF printing, where inks are pigment-based and white ink is particularly demanding, stable flow is even more important – a good damper often makes the difference between “smooth” operation and constant nozzle dropout issues.

How It Is Used and Why It Is Important

The damper is installed directly before the print head (between the tube and the head connector). Inside, it has a membrane that acts as a shock absorber – preventing flow pulsation caused by carriage movement, pump action, pressure changes, or minor irregularities in supply. This ensures that the print head receives a uniform, stable ink supply, which directly affects print quality.

For Epson I1600 and I3200 heads (high speed, high precision), system stability is even more important because the heads operate with very precise droplet dosing. Any air bubble, pressure fluctuation, or partially clogged filter can cause:

• banding/stripes,

• uneven coverage,

• nozzle dropouts,

• poorer detail sharpness and less “clean” color transitions,

• more cleanings and consequently higher ink consumption.

Practical Advantages of the Damper

• Stabilizes ink flow and improves print repeatability

• Reduces air bubbles and thus the risk of channel dropouts

• Filters fine particles that could reach the head

• Helps achieve better white ink application (fewer interruptions, more uniform layer)

• Fewer “unexplained” errors, fewer reprints, and less material waste

When Replacement Is Recommended

Since the damper is a consumable part, the membrane wears out over time or the filter becomes partially clogged. Replacement is recommended when you notice:

• frequent nozzle dropouts that quickly return even after cleaning,

• visible bubbles in the line or unstable ink supply,

• uneven application (especially with white),

• banding that was not present before,

• problems with “prime” line filling or slow filling.

In environments with intensive DTF production, it makes sense to replace dampers preventively (periodically every 6 – 12 months), as they are a low-cost part of the system, but their impact on print stability is significant.

Who This Product Is For

This damper is intended for all users of DTF printers with Epson I1600 or I3200 print heads who want:

• more reliable operation,

• fewer downtimes and fewer cleanings,

• more consistent transfer quality,

• a stable system even during daily work with white ink.
